As an original manufacturer of sheet metal machinery, STON designs and builds CNC turret punch presses for industrial users who need efficient, repeatable punching operations. Our machines are widely used in electrical cabinets, switchgear, lockers, ventilation ducts, lighting fixtures, kitchen equipment and many other sheet metal products. With servo-driven axes, rigid frames and optimized tool layout, the STON turret punch press ensures fast indexing, accurate positioning and long tool life, making it a strong core machine in your fabrication workshop.
| No. | Name | Parameter | Unit | Remark |
| 1 | Punching force | 300 (30) | KN (T) | 1500Nm |
| 2 | Frame structure | “O” type closed frame | ||
| 3 | Maximum plate size for one-time positioning | X-axis 3000 mm | mm | X-axis secondary positioning can process 5000mm |
| Y-axis 1250 mm | mm | |||
| 4 | Maximum plate thickness for processing | 6 | mm | |
| 5 | Maximum diameter for one-time punching | Φ88.9 | mm | |
| 6 | Maximum punching frequency | 1800 | hpm | |
| 7 | Maximum number of punching times | 800 | hpm | |
| 8 | Number of controlled axes | 5 (X, Y, Z, T, C) | Pcs | |
| 9 | Mold form | Long guide 85 series international standard mold | ||
| 10 | Turret station distribution | 16A, 11B, 3C, 2D | Standard | |
| (including rotating stations 1B, 1C) | ||||
| 11 | Repositioning cylinder | 2 | Set | |
| 12 | Maximum feeding speed | X-axis 80 | m/min | |
| Y-axis 80 | m/min | |||
| 13 | Workbench structure | Brush/universal steel ball composite table | Stainless steel edging | |
| 14 | Maximum turret speed | 40 | rpm | |
| 15 | Processing accuracy | ±0.1 | mm | |
| 16 | Laser cutting range | 1250*2500 | mm | |
| 17 | Laser cutting power | 3000 | W | |
| 18 | Laser cutting accuracy | ±0.1 | mm | |
| 19 | Laser Y-axis travel | 1250 | mm | |
| 20 | Laser Z-axis travel | 150 | mm | |
| 21 | Laser cutting blanking size | ≤30 | mm | |
| 22 | Total number of equipment axes | 7 (X, Y, Z, T, C, Z, Y) | Pcs | |
| 23 | Overall dimensions | 6500*5000*2230 | mm |
The STON CNC turret punch press is engineered for precise punching, nibbling and forming on thin to medium-thickness sheet metal. Whether you produce perforated panels, cabinet doors, ventilation parts or control panels, the machine maintains clean edges, accurate hole positions and consistent repeatability across large batches.

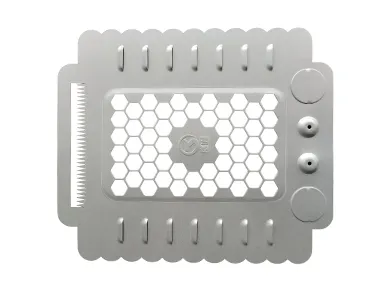

Electrical cabinets and control boxes

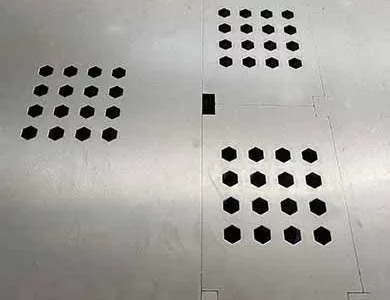

Punching&Cutting

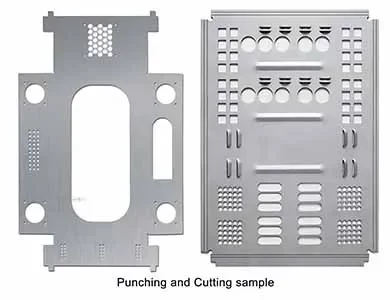

Sample

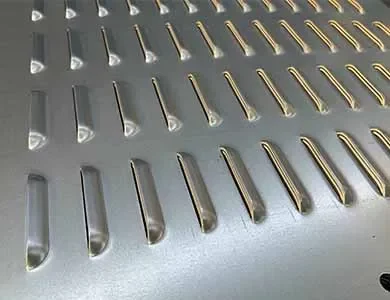

Shutter
The STON CNC turret punch press combines fast servo motion, optimized turret layout and intelligent nesting software to deliver more finished parts per shift. The following features help you reduce tooling changes, save material and keep your workshop running efficiently.
Servo-driven axes for fast positioning and indexing
Stable high punching frequency for mass production
Reduced cycle time on multi-hole and complex parts
Heavy-duty welded structure for minimal deformation
Precision guides keep tools aligned during high-speed strokes
Consistent hole quality and position tolerance over long runs
Multiple stations for round, oblong and special-shape tools
Quickly switch between common tools without frequent setup
Support for forming tools such as louvers, embossing and countersinks
CAM software optimizes sheet utilization and punching paths
Automatic nesting reduces material scrap and programming time
Programs can be stored and recalled for repeat orders
User-friendly CNC interface with clear graphics
Real-time display of machine status and production data
Simplified training for new operators and supervisors
Compatible with automatic loading and unloading systems
Can be linked with laser cutting and panel bending equipment
Forms a flexible sheet metal production line from blanking to finished parts
Clean holes and precise shapes are essential for downstream assembly, coating and long-term product performance. The STON CNC turret punch press uses rigid structures, servo control and high-quality tooling to minimize burrs, deformation and dimensional deviation. Accurate coordinates and repeatable positioning help avoid fitting problems in later bending, welding and installation processes, reducing rework and quality complaints.

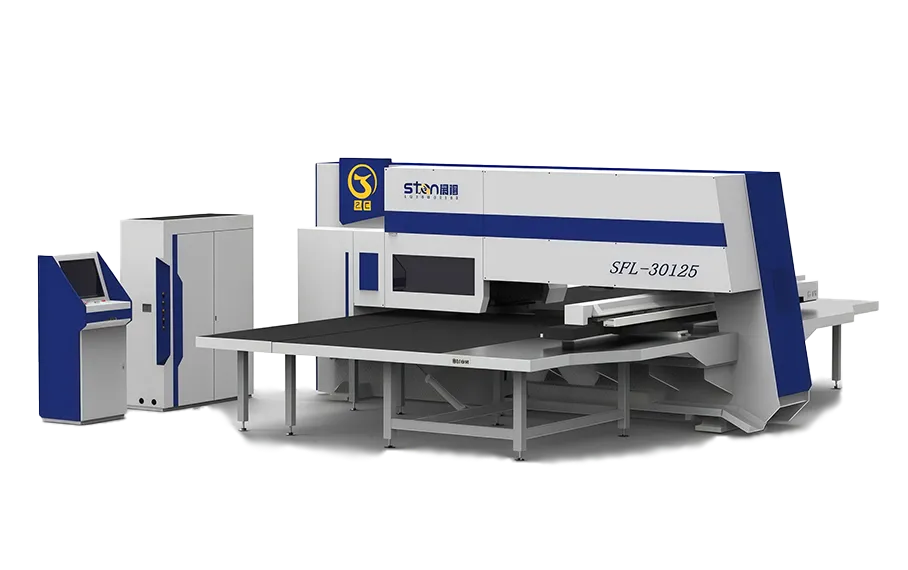

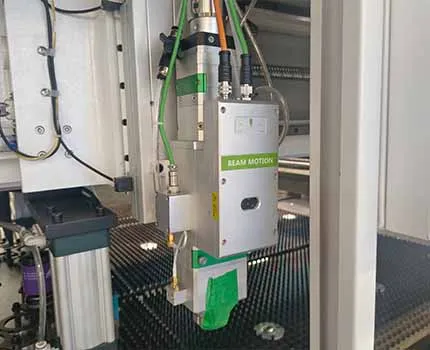

The Punch Laser Combined Machine achieves seamless integration of stamping and laser cutting, allowing punching, forming, rolling, tapping, and cutting processes to be completed in a single setup. This not only improves sheet metal utilization and processing capacity but also supports flexible small-batch, multi-variety production. It is an ideal solution for modern CNC punching and sheet metal fabrication.

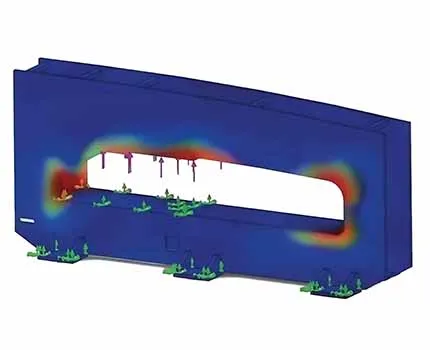

The machine adopts a welded and stress-relieved frame to withstand high-speed punching forces. Precision linear guides and slides support smooth ram motion, ensuring accurate tool alignment and stable punching quality throughout the machine’s service life.
A robust turret with multiple stations holds a wide range of punching and forming tools. Quick-change tool holders and indexable stations shorten setup time. Round, oblong, square and special-shape tools can be arranged to match your typical part requirements.

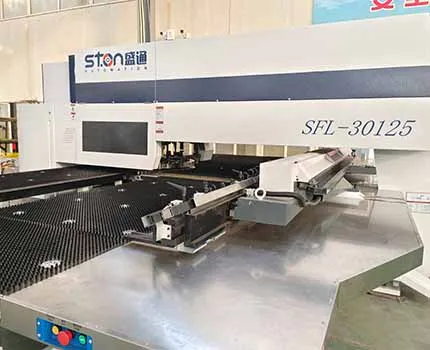

Programmable clamps grip the sheet firmly while allowing automatic repositioning for large-format parts. Brush or ball tables reduce friction and protect the sheet surface. Optional repositioning devices help process plates larger than the standard X-Y stroke.

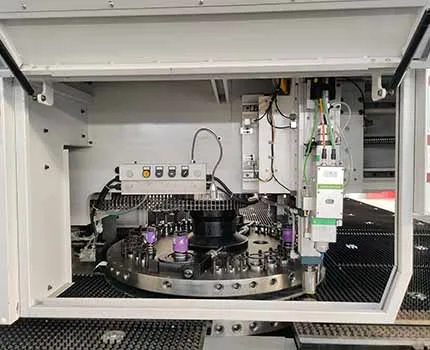

The punching unit provides powerful and stable force for clean hole edges and long tool life. Servo or hydraulic technology is selected according to model and application needs, ensuring efficient energy use and smooth punching performance.

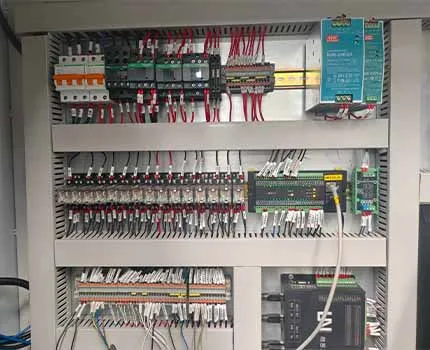

The electrical cabinet integrates CNC control, servo drives, PLC and safety modules. The control system manages axis motion, turret indexing, tool selection and punching sequences, providing alarms and diagnostic information to support daily operation and maintenance.

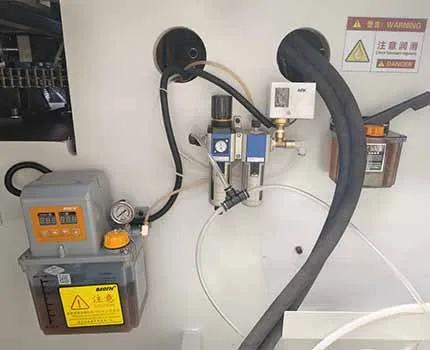

Key moving parts are equipped with centralized or automatic lubrication to minimize wear. Maintenance points are easy to access, allowing your technicians to complete regular inspections and servicing quickly, keeping the turret punch press in reliable condition.
We believe in building strong, transparent relationships with our clients. That’s why we invite our partners to visit our state-of-the-art manufacturing facility and see our production process up close.
AnthonyProcurement Manager, HVAC
Component Factory (Germany)
JeffreyFactory Owner, Stainless Kitchenware
Manufacturer (USA)
Jared– Operations Director, Electrical Cabinet
Factory (Canada)
Our machines is suitable for common sheet metals such as stainless steel, carbon steel, aluminum alloy, and galvanized sheet. The thickness range is 0.2mm-6mm, meeting needs of various industries, including home appliances, hardware, and cabinets. It also supports asymmetric and complex customized processes.
Yes, we offer a one-stop service: “on-site installation + commissioning + customized training.” Professional engineers will visit the customer’s site to complete production line assembly and equipment integration commissioning to ensure the line reaches its designed capacity. We also provide theoretical and practical training for operators (6-8 days), covering equipment operation, routine maintenance, and troubleshooting. After the training, we provide an operator manual and video tutorials.
Customized services are available. We will optimize the machine structure based on the customer’s workshop space, load capacity, and processing requirements. While ensuring processing accuracy, we adapt the machine to the shop’s existing power and air supply conditions to ensure smooth installation and efficient operation.
We have established a 24-hour global after-sales response mechanism: Customers can submit troubleshooting reports via phone, email, or online customer service, and a preliminary solution will be provided within 1 hour. If remote debugging is required, an engineer will provide video guidance within 2 hours. For hardware repairs, domestic customers will receive a visit within 48 hours, while overseas customers can use authorized service centers or expedited delivery of parts (with installation instructions) to ensure a quick resolution.
All of our standard equipment (flexible bending centers, CNC turret punch presses, press brakes, and punching and shearing machines) comes with a one-year free warranty. For some products with higher system complexity, the warranty period can be extended to 18 months. The warranty covers repair and replacement of quality issues with core components (such as servo motors, CNC systems, and guide rails), as well as free on-site inspections during the warranty period. Please note that equipment failures caused by human error, force majeure (such as floods and earthquakes), or failure to follow the maintenance manual are not covered by the free warranty, but paid repair services are available.
Extended warranties are available, with coverage ranging from 1 to 3 years. These plans are customized based on the equipment type, frequency of use, and customer needs. A one-year extension for a single device costs approximately 3%-5% of the total price, while bulk extensions for multiple devices or fully automated production lines offer a 20% discount. During the extended warranty period, in addition to core component repairs, customers also receive a free annual comprehensive equipment inspection and maintenance service to help them proactively identify potential faults and extend the life of their equipment.
We offer flexible payment options to meet the needs of domestic and international customers: ① Telegraphic Transfer (T/T): 30% prepayment, 70% before equipment leaves the factory; ② Letter of Credit (L/C): We accept irrevocable letters of credit issued by the customer’s partner bank at sight to ensure the security of funds for both parties. All payment methods comply with international trade practices and support mainstream settlement currencies such as the US dollar and the euro.
A CNC punch machine is a sheet metal punching machine that uses computer numerical control to drive a turret press. It can perform punching, nibbling, forming, and embossing with high precision. By rotating the turret equipped with multiple dies, the machine quickly switches tools to process different shapes on sheet metal efficiently.
CNC punch presses are suitable for a wide range of sheet metal materials, including stainless steel, aluminum, cold-rolled steel, galvanized steel, and coated sheets. With proper tooling, the CNC punch machine ensures clean edges, consistent punching depth, and accurate forming for diverse industrial applications.
Compared with manual punching or older mechanical presses, a CNC turret punching machine offers:
Higher punching speed and repeatability、Reduced setup time with automatic tool indexing、Lower error rates and consistent quality、Compatibility with automated sheet handling systems
This improves overall productivity and lowers the total cost of ownership.
CNC punching machines are widely used in industries such as electrical cabinets, HVAC ducting, kitchenware, telecommunications enclosures, automotive sheet metal parts, lighting equipment, and furniture manufacturing. They are ideal for both small-batch custom orders and large-scale sheet metal production.
When selecting a CNC punch machine, consider:
Sheet size and thickness capacity、Turret configuration and number of stations、Punching speed and stroke frequency、Automation options (loading/unloading, sorting)、Brand reliability and after-sales support
Evaluating these factors ensures the machine meets your current and future production needs.
It is ideal for parts that require many holes, slots, louvers or special shapes, such as electrical cabinet panels, ventilation ducts, lighting fixtures, metal furniture and appliance components.
For parts with a large number of standard holes and repeating patterns, a turret punch press is often faster and more economical than laser cutting. It can also perform forming operations such as louvers and embossing, which lasers cannot do directly.
Typical models process thin to medium-thickness carbon steel, stainless steel and aluminum sheets. The exact capacity depends on the configuration; we will recommend a model based on your material, thickness and product types.
The number of stations depends on the model and turret design. A combination of fixed and indexable stations can be used to hold round, oblong and special-shape tools. We will help configure the turret according to your part drawings.
Yes. It can be combined with loading/unloading systems, storing towers, laser cutting units and panel benders to form a flexible sheet metal production line.
STON offers machine commissioning, operator training, remote support, spare parts supply and on-site service when necessary. Our goal is to keep your turret punch press running efficiently for many years.
Whether you're upgrading an existing line or starting a new project, STON will customize a CNC solution for your production.
