CNC turret punch press is an automated sheet metal processing equipment, with a rotatable turret as the core, and a variety of molds on the turret. Through the control of the CNC system, the turret switches the mold and moves with the workbench, which can complete various sheet metal processing procedures such as punching and forming. It is widely used in the production of sheet metal parts in the machinery, electrical appliances and other industries.
| No. | Name | Parameters | Unit | Remarks |
| 1 | Punching force | 250（25）/300（30）/400（40） | KN（T） | |
| 2 | Frame structure | O” type closed frame | ||
| 3 | Primary positioning
Max. machined plate size |
X-axis 2,500 | mm | （X-axis secondary positioning machinable 5,000mm) |
| Customizable | ||||
| Y-axis 1,250/1,500/2,000/2300 | mm | |||
| 4 | Max. machined plate thickness | 6 | mm | Aluminum plate |
| 5 | Max. diameter of one punch | Φ88.9 | mm | Customizable |
| 6 | Max.punching frequency | 1,800 | hpm | |
| 7 | Max.number of punches | 800 | hpm | |
| 8 | Number of controlled axes | 5 （X, Y, T, C, R） | Pcs | |
| 9 | Mold type | Long guide 85 series international standard mold | ||
| 10 | Turret station distribution | 16A, 11B, 3C, 2D | Standard | Customizable |
| （Including rotary stations 1B and 1C） | ||||
| 11 | Repositioning cylinder | 2 | Set | |
| 12 | Number of clamps | 3 | Pcs | |
| 13 | Max.feeding speed | X-axis 80 | m/min | |
| Y-axis 80 | m/min | |||
| 14 | Workbench structure | Brush/universal steel ball bench top | Stainless steel wrap | |
| 15 | Max. turret speed | 40 | rpm | |
| 16 | Processing accuracy | ±0.1 | mm | |
| 17 | Max. load bearing | 150 | Kg | |
| 18 | Total power | 5 | KW | |
| 19 | Airsource pressure | 0.55 | MPa | |
| 20 | Power supply | 380±5% | V | |
| 21 | Dimensions | L×W×H | mm | |
| 5,000/5,500/6,500×7800×5200×2,100 |
CNC turret punch press is advanced automated sheet metal processing equipment, built around a high-strength rotatable turret and multiple interchangeable molds. Controlled by a CNC system, the turret automatically switches tools and synchronizes with the workbench to complete various sheet metal punching, forming, and cutting processes. This ensures high-speed precision, flexibility for different applications, and long-term stability in industrial sheet metal fabrication.

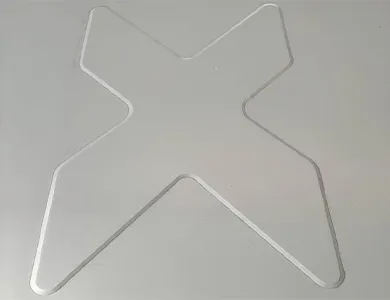

Rolling

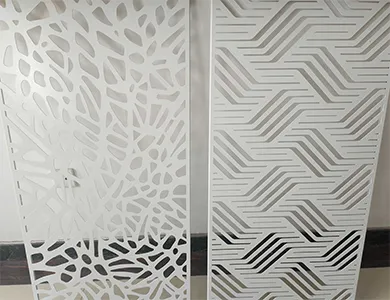

Decorative punching

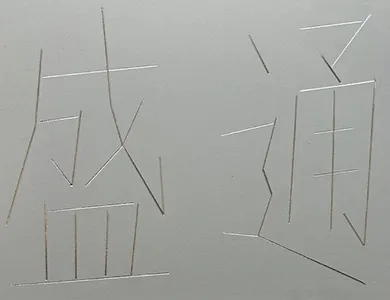

Marking

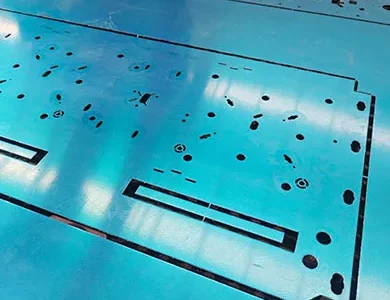

Lamination punching
The CNC turret punch press can quickly switch molds, eliminating frequent manual tool changes. With flexible programming, it meets the production needs of multiple sheet metal varieties and small-batch orders, ensuring high processing accuracy and consistency. This makes it a reliable and efficient sheet metal punching machine solution.
Our CNC turret punch press uses advanced servo drive for precise and consistent punching and forming across various sheet metal sizes—ideal for high-accuracy production lines.
This CNC punching machine features a high-performance servo motor that consumes less energy than traditional hydraulic presses, cutting costs and supporting sustainable manufacturing.
The servo-driven system accelerates punching and deceleration processes, significantly reducing cycle time and boosting throughput—perfect for high-demand sheet metal jobs.
Compatible with a wide variety of turret punch tools, this CNC press handles multiple hole shapes and sizes with ease—ideal for cabinets, HVAC panels, enclosures, and more.
Intuitive CNC control system simplifies setup and operation. Operators can adapt quickly, improving sheet metal punching efficiency while reducing downtime and training costs.
With a welded steel frame and durable components, this turret punch press offers stable, long-life performance—suitable for continuous operation in demanding production environments.
Our Mechanical CNC Turret Punching Machines deliver high-precision, high-quality punching, nibbling, and forming for a wide range of sheet-metal applications. See how they’re used across industries to create parts with perfect consistency and accuracy
The CNC turret punch press is advanced automated sheet metal punching equipment. With a rotatable turret as the core and multiple dies, it performs punching, forming, and shaping in one setup. Controlled by a CNC system, the turret switches molds seamlessly and moves with the workbench, completing a wide range of sheet metal processing tasks. It is widely applied in machinery, electrical appliances, cabinets, enclosures, and industrial sheet metal fabrication.

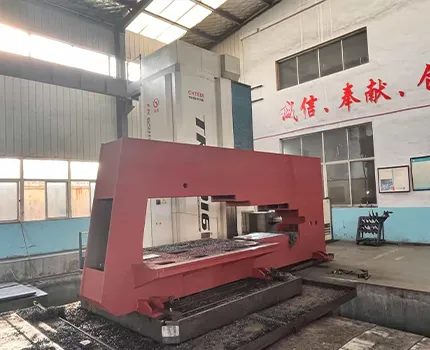

The frame adopts a closed “O” structure, welded with high-strength steel plates. After high-temperature furnace tempering, all welding stress is removed, ensuring frame rigidity and long-term stability. The throat design reduces deformation while increasing strength, providing reliable tonnage capacity for heavy-duty punching operations.

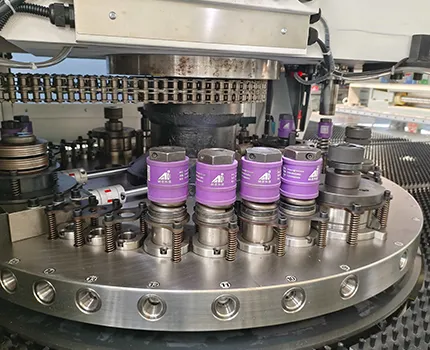

Equipped with a turbine worm reducer and double-chain drive, the cutter head achieves stable transmission and precise displacement. The enlarged dual-cylinder design allows synchronous and accurate positioning, reducing side sleeve wear and ensuring high stability in turret punching.

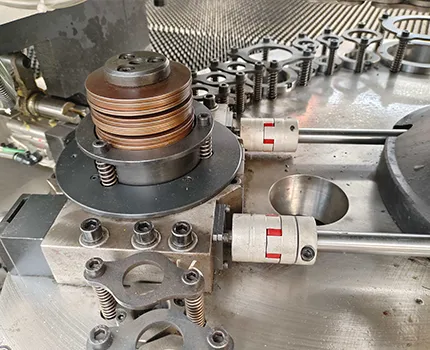

The rotary station is driven by a synchronous belt, delivering high transmission speed, positioning precision, and low noise — ideal for high-efficiency CNC turret punching machines.

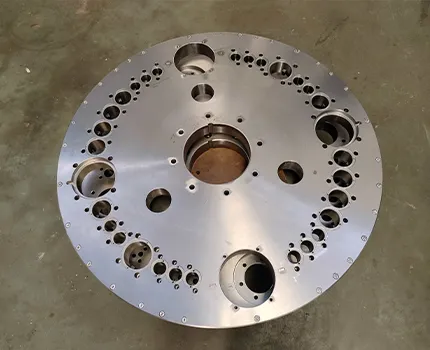

Made of 45# carbon steel, quenched and tempered, then CNC-ground for flatness and smoothness. Special fixtures ensure coaxiality of upper and lower dies. Each cutter head passes strict inspection using imported 3D measuring equipment, guaranteeing accuracy in sheet metal punching machines.

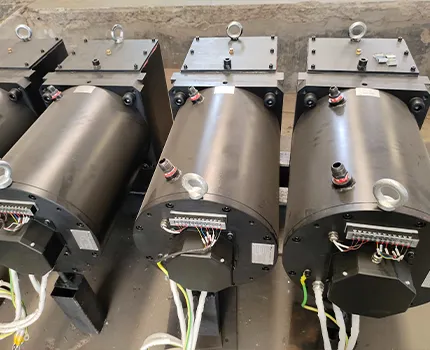

The hollow-shaft servo motor directly drives the crankshaft, minimizing connection misalignment. This provides high stability, fast response, and efficient punching. The swing method automatically adjusts angles based on stroke, improving punching speed and precision in CNC punch presses.

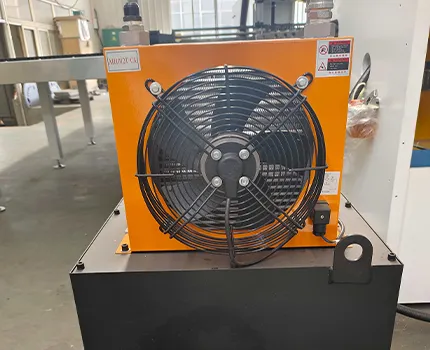

The servo motor is cooled by an oil-cooling system, ensuring low temperature rise, high overload capacity, and stable operation. This avoids frequent coolant replacement in cold regions, enhancing reliability of the turret punching machine.

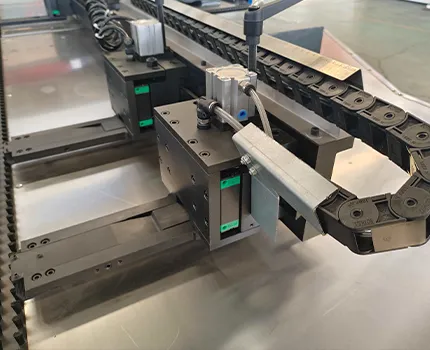

The floating pneumatic clamp provides strong clamping force and stable feeding. Its dovetail carriage ensures rigidity while enabling easy movement. During feeding, the clamp floats automatically, reducing labor intensity and improving material handling efficiency in sheet metal punching machines.

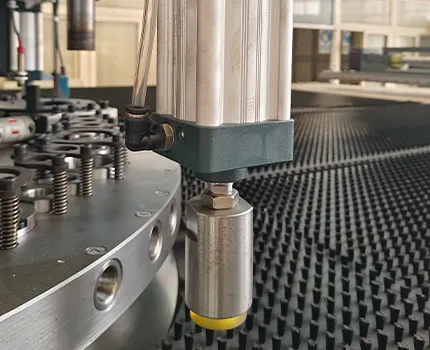

Advanced secondary positioning ensures double accuracy insurance. With real-time monitoring sensors and CNC control, workpieces are repositioned with high precision, eliminating errors caused after first positioning.

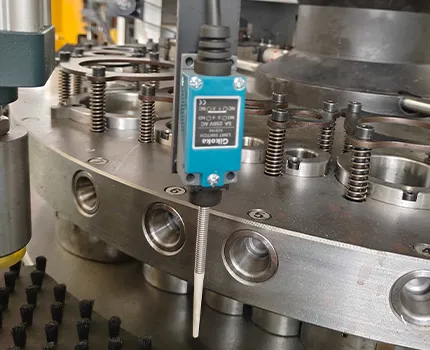

When collision risk is detected, the system instantly stops all machine movements. This safety mechanism protects both workpieces and machine parts from damage during CNC punching operations.

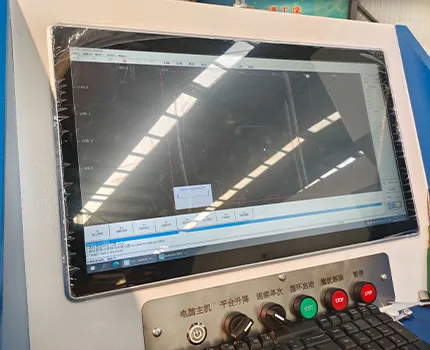

Equipped with imported motherboard and motion control card, plus Panasonic RTEX bus servo units, the CNC control system ensures fast communication and closed-loop signal transmission. Multi-axis coordination achieves higher precision in CNC turret punch presses.

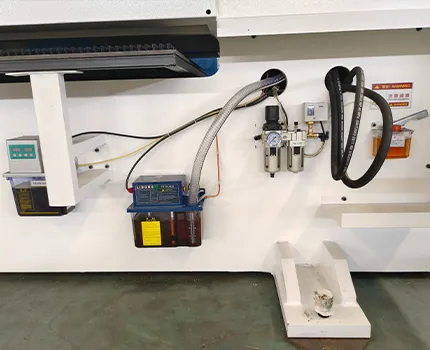

The multi-point automatic lubrication system guarantees full lubrication of all moving parts. With copper pipelines instead of plastic, it prevents wear, leakage, and aging, extending the service life of screws, guide rails, and the entire sheet metal punching machine.
We believe in building strong, transparent relationships with our clients. That’s why we invite our partners to visit our state-of-the-art manufacturing facility and see our production process up close.
AnthonyProcurement Manager, HVAC
Component Factory (Germany)
JeffreyFactory Owner, Stainless Kitchenware
Manufacturer (USA)
Jared– Operations Director, Electrical Cabinet
Factory (Canada)
Our machines is suitable for common sheet metals such as stainless steel, carbon steel, aluminum alloy, and galvanized sheet. The thickness range is 0.2mm-6mm, meeting needs of various industries, including home appliances, hardware, and cabinets. It also supports asymmetric and complex customized processes.
Yes, we offer a one-stop service: “on-site installation + commissioning + customized training.” Professional engineers will visit the customer’s site to complete production line assembly and equipment integration commissioning to ensure the line reaches its designed capacity. We also provide theoretical and practical training for operators (6-8 days), covering equipment operation, routine maintenance, and troubleshooting. After the training, we provide an operator manual and video tutorials.
Customized services are available. We will optimize the machine structure based on the customer’s workshop space, load capacity, and processing requirements. While ensuring processing accuracy, we adapt the machine to the shop’s existing power and air supply conditions to ensure smooth installation and efficient operation.
We have established a 24-hour global after-sales response mechanism: Customers can submit troubleshooting reports via phone, email, or online customer service, and a preliminary solution will be provided within 1 hour. If remote debugging is required, an engineer will provide video guidance within 2 hours. For hardware repairs, domestic customers will receive a visit within 48 hours, while overseas customers can use authorized service centers or expedited delivery of parts (with installation instructions) to ensure a quick resolution.
All of our standard equipment (flexible bending centers, CNC turret punch presses, press brakes, and punching and shearing machines) comes with a one-year free warranty. For some products with higher system complexity, the warranty period can be extended to 18 months. The warranty covers repair and replacement of quality issues with core components (such as servo motors, CNC systems, and guide rails), as well as free on-site inspections during the warranty period. Please note that equipment failures caused by human error, force majeure (such as floods and earthquakes), or failure to follow the maintenance manual are not covered by the free warranty, but paid repair services are available.
Extended warranties are available, with coverage ranging from 1 to 3 years. These plans are customized based on the equipment type, frequency of use, and customer needs. A one-year extension for a single device costs approximately 3%-5% of the total price, while bulk extensions for multiple devices or fully automated production lines offer a 20% discount. During the extended warranty period, in addition to core component repairs, customers also receive a free annual comprehensive equipment inspection and maintenance service to help them proactively identify potential faults and extend the life of their equipment.
We offer flexible payment options to meet the needs of domestic and international customers: ① Telegraphic Transfer (T/T): 30% prepayment, 70% before equipment leaves the factory; ② Letter of Credit (L/C): We accept irrevocable letters of credit issued by the customer’s partner bank at sight to ensure the security of funds for both parties. All payment methods comply with international trade practices and support mainstream settlement currencies such as the US dollar and the euro.
A turret punch press is an automated sheet metal punching machine that uses a rotating turret loaded with multiple tools. Through CNC control, the turret switches tools and coordinates with the worktable to complete operations such as punching, nibbling, forming, and embossing in one setup, improving efficiency and precision in sheet metal fabrication.
CNC turret punch presses are widely applied in industries such as electrical cabinets, enclosures, telecommunications, HVAC ducting, metal furniture, and appliance manufacturing. They are ideal for high-precision sheet metal punching machines where flexibility, speed, and repeatability are required.
Turret punch presses excel in fast punching, forming, and embossing operations, which laser cutting machines cannot perform directly. They are more efficient for repetitive hole punching and forming tasks, while also offering lower operational costs for high-volume production. Many manufacturers integrate CNC punch presses with laser cutting for hybrid solutions.
Modern CNC turret punch presses provide high accuracy and consistency, often achieving tolerances of ±0.1 mm. Equipped with servo-driven systems, automatic tool indexing, and advanced CNC control, they ensure stable punching force, precise positioning, and reliable repeatability, even during continuous production.
Turret punch presses improve efficiency by reducing tool change time, supporting multi-station tooling, and enabling continuous punching cycles. With features such as automatic sheet repositioning, floating pneumatic clamps, and CNC automation, they shorten cycle times, reduce manual intervention, and lower labor costs in sheet metal punching operations.
