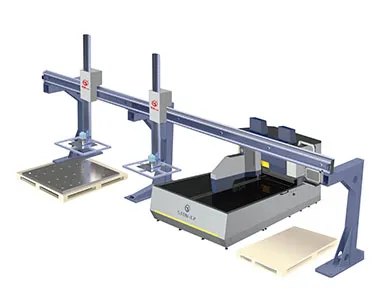

As an efficient and stable automated material handling solution, the truss loading and unloading system forms an integrated production line with the bending center, which can completely change the traditional manual loading and unloading operation mode, and realize the automation of the entire process from plate loading, positioning, bending to finished product unloading, greatly improving production efficiency, ensuring processing accuracy and reducing labor costs.
| NO. | Model | Remark |
| 1 | STON-H2-A | Compatible with 1m panel bender |
| 2 | STON-H2-B | Compatible with 1.4-1.6m panel bender |
| 3 | STON-H2-C | Compatible with 2-2.5m panel bender |
| 4 | STON-H2-D | Compatible with 2.8m panel bender |
| 5 | STON-H2-E | Compatible with 3.2m panel bender |
| 6 | STON-H2-F | Compatible with 4.1m panel bender |
| Truss standard configuration: (1) Square tube welded structure, Y+Z+C axis, equipped with spreader and centering table, two sets of grippers (upper and lower) (2) Domestic servo drive + Trio system, can be adapted to different needs with vacuum suction cups, sponge suction cups or magnetic suction cups |
||

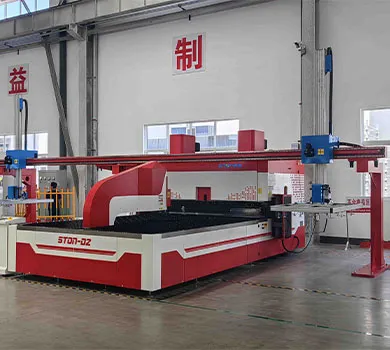

As an efficient and stable automated material handling solution, the truss loading and unloading system forms an integrated production line with the bending center, which can completely change the traditional manual loading and unloading operation mode, and realize the automation of the entire process from plate loading, positioning, bending to finished product unloading
Main structure
Control system
Transmission system
Truss
High-precision positioning avoids manual operation errors and improves the consistency of batch workpieces
Replace 2-3 workers and increase daily production capacity by 3-6 times.
Quickly adapt to multi-variety and small-batch orders to meet diverse market demands.
The gantry loader enables continuous loading, positioning, bending, and unloading—cutting takt time and eliminating manual handling with a fully automated loading and unloading system.
Our automated loading and unloading system boosts output by 3–6× via uninterrupted truss cycles and fast job changeovers.
Our automated loading and unloading system boosts output by 3–6× via uninterrupted truss cycles and fast job changeovers..
The truss gantry system features interchangeable vacuum, sponge, or magnetic grippers. It protects material surfaces and adapts to various sheet sizes and gauges
With centralized HMI and auto/manual switching, our gantry robot system integrates with loaders, stackers, and robots. It improves OEE, lowers handling errors, and reduces unit production costs.
Compatible with H2-A to H2-F benders (1.0 m–4.1 m), the gantry loader system adapts to multiple widths with precision.
Our STON automated loading and unloading system ensures high-precision, high-efficiency sheet handling for panel benders. This gantry robot system automates loading, centering, positioning, and finished-part unloading in one continuous flow—improving speed, accuracy, and consistency across operations.
As an efficient and stable automated material handling solution, the truss loading and unloading system forms an integrated production line with the bending center, which can completely change the traditional manual loading and unloading operation mode, and realize the automation of the entire process from plate loading, positioning, bending to finished product unloading, greatly improving production efficiency, ensuring processing accuracy and reducing labor costs.

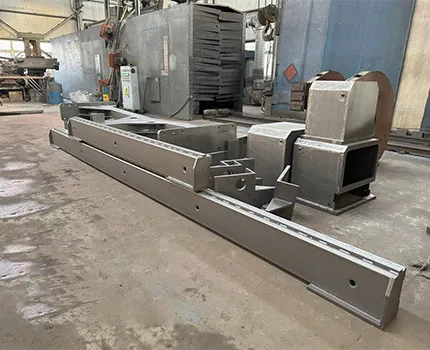

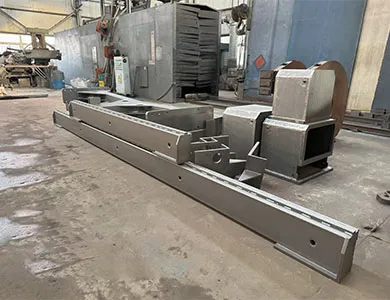

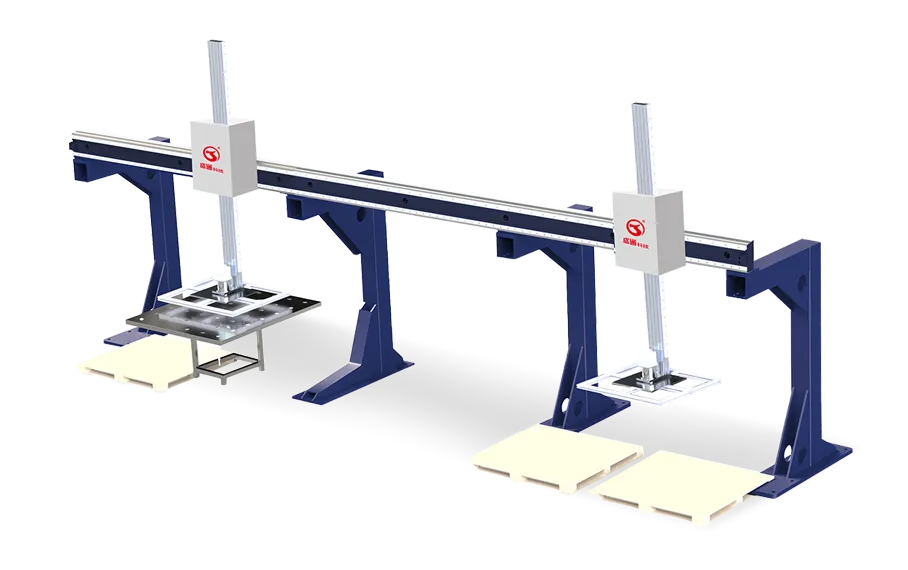

The main body of the gantry loading system is welded from high-quality structural steel. It undergoes annealing and aging to eliminate internal stress, then coated with anti-corrosion paint to enhance durability. The double-beam truss and vertical dual guide rails ensure high load capacity and smooth, vibration-free movement, making it ideal for heavy-duty sheet metal automation.

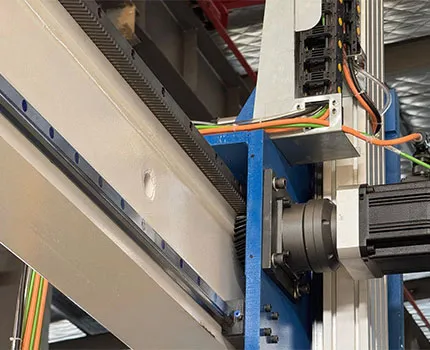

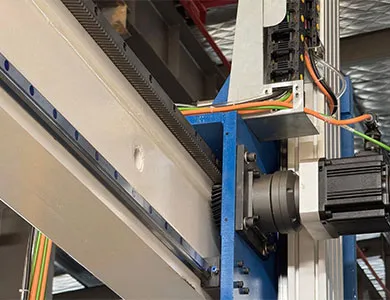

This truss transfer system adopts dual vertical linear guides and rack-and-pinion transmission for stable long-distance movement (3–10 meters). It supports X-axis speeds up to 100–150 m/min, with dual-pinion backlash elimination for precision. The track guide model is selected according to payload size, ensuring H-level motion accuracy in automated operations.

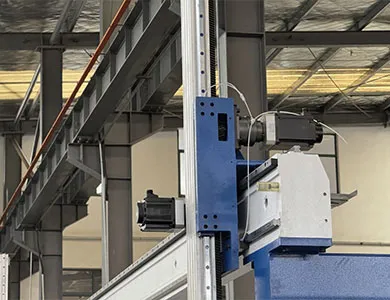

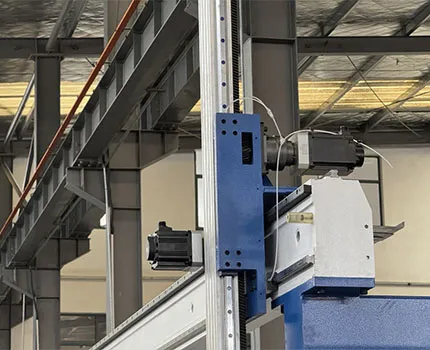

The industrial robot controller is equipped with a standard Ethernet interface, enabling real-time communication between the truss loader and CNC bending center. It supports intelligent motion planning, multi-axis synchronization, and full-line automation. This architecture ensures the truss gantry robot can adapt to diverse sheet handling tasks efficiently.
Designed for flat, non-magnetic metal sheets such as aluminum or stainless steel, this system features vacuum pumps (flow rate: 100–500 L/min) and pressure sensors for real-time suction monitoring. The number of vacuum suction cups is customized based on sheet size. It provides large-area grip without surface damage, and adapts to irregular or thin panels—ideal for automatic sheet metal pick-and-place systems.
Optimized for magnetic materials like cold-rolled steel or galvanized steel, these electromagnetic sheet lifters offer powerful gripping force with rapid response time. The magnetic field strength is adjustable from 0–220 V to match various sheet thicknesses. An integrated demagnetization circuit prevents residual magnetism, ensuring safe release and efficient stacking.
These are ideal for handling decorative or coated panels such as furniture boards or appliance casings. The low-adhesion sponge cups prevent pulling or scratching of protective films, ensuring surface integrity during automated unloading. This enhances line efficiency and reduces the need for secondary film handling or rework.
